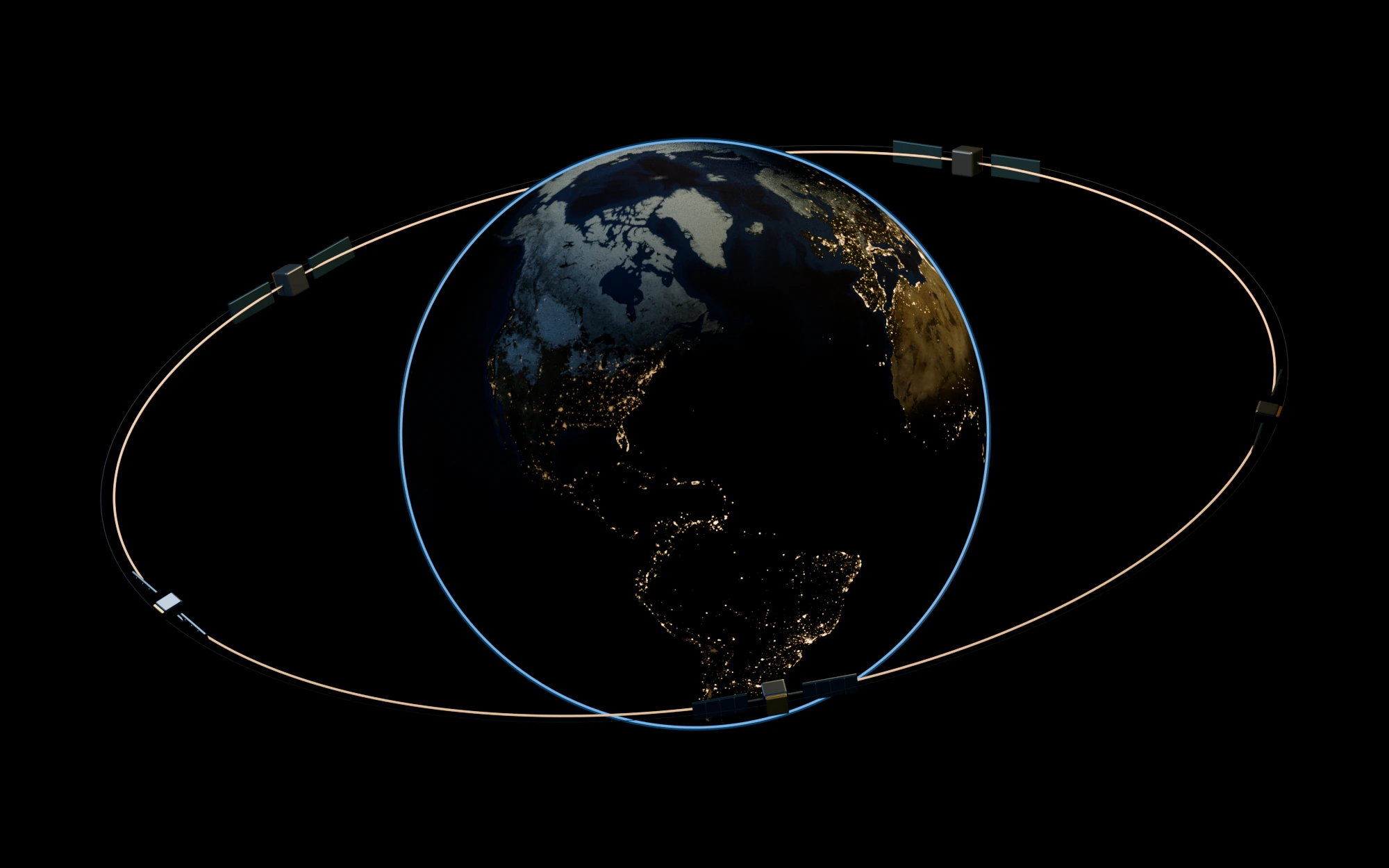

An illuminated Earth surrounded by a schematic orbital ring and enlarged representative satellites.

Light · Data · Heat / Orbit to pixel

The Guardian Ring

A planet in view. A signal in the dark.

Missile-warning satellites watch the whole Earth for the infrared heat of a rocket launch. Some sit in geostationary orbit , 35,786 km above Earth , keeping pace with the planet’s turn. Follow that heat from a rising plume, across space, through a telescope and a cold detector, and down to the ground.

Personal educational project based on cited public sources. Not an official publication of my employer or of the agencies or companies discussed. Models are schematic; estimates and assumptions are identified.

As drawn: schematic positions, compressed orbit spacing, enlarged satellites.

The whole trip in brief

Far, fast, cold.

Heat leaves a plume, crosses a long way, and lands on a detector far colder than anything it watches. Every step below has a published or labeled number, except the last, which has none.

  1. Far
    35,786 km

    A geostationary satellite looks straight down from this height.

  2. Fast
    0.12 s

    One-way light time over that distance, before any processing.

  3. Cold
    43 K

    About −230 °C: the design temperature of a civil twin’s detector (Landsat 9 TIRS-2), against about 288 K (15 °C) for the Earth it watches.

  4. Then
    Not published

    How long it takes from detection to a warning is not public, so this story gives no time. It follows the roles instead.

01 / The ring

Stay above
the same Earth.

A geostationary satellite follows a circular orbit over the equator in step with Earth’s rotation. It stays above the same point on the ground, so it can watch the same part of the globe without a break.

One orbit is not enough. GAO’s public reports describe the Space Based Infrared System (SBIRS) with satellites in geostationary orbit and in highly elliptical orbits. The Space Force’s public fact sheet adds that the elliptical-orbit sensors ride on host satellites, and that the program still includes legacy Defense Support Program (DSP) satellites and ground systems. Next in line, GAO describes the planned Next-Generation Overhead Persistent Infrared system (Next Gen OPIR) as SBIRS’s intended replacement.

The ring in the opening image is schematic: positions, spacing and satellite sizes are chosen to show the geometry.

Explore the ring
Geostationary altitude35,786 km
Geosynchronous period23h 56m 4s
Read the evidence

Tap a label beside a figure to see the source and the passage behind it.

Open the source register

Check the arithmetic. Earth turns once relative to the stars in 86,164 s, which is 23 h 56 min 4 s. Kepler’s third law puts an orbit with that lap time 42,164 km from Earth’s center. Subtract Earth’s 6,378 km radius and the altitude is 35,786 km. NOAA gives the same altitude and NASA the same period, so they confirm the result.

Four orbits, side by side

Each orbit trades how much of Earth one satellite can see against how long it keeps seeing it and how far its light must travel. The panels draw the four teaching orbits at their true distances; the table puts numbers on them.

GEO: a satellite at its true distance from Earth, with the horizon lines and the part of Earth above them
GEO
HEO, at its far end: a satellite at its true distance from Earth, with the horizon lines and the part of Earth above them
HEO, at its far end
MEO: a satellite at its true distance from Earth, with the horizon lines and the part of Earth above them
MEO
LEO: a satellite at its true distance from Earth, with the horizon lines and the part of Earth above them
LEO

To scale: Earth, each satellite’s distance, and its horizon lines. The bright arc is the part of Earth above that satellite’s horizon. The orbits are teaching examples, and the elliptical orbit is drawn at its far end.

Teaching orbits. Share of Earth in view is horizon-to-horizon geometry, not what any sensor covers. The elliptical orbit is evaluated at its far end.
OrbitAltitudeOne lapShare of Earth in viewLight time, straight downBasis
GEO35,786 km23 h 56 min42%119 ms
HEO39,361 km at apogee11 h 58 min43%131 ms
MEO20,000 km11 h 51 min38%67 ms
LEO1,000 km1 h 45 min7%3.3 ms

From the high latitudesFrom geostationary orbit, a point at 60° latitude on the satellite’s own meridian sees it 22° above the horizon. At 75° latitude it is only 6° up, and the satellite reaches the horizon at 81°. A high, tilted ellipse changes that geometry: NASA says the Molniya orbit works well for observing high latitudes. The angles are geometry only, and say nothing about what a sensor can detect.

What each orbit trades

Geostationary (GEO)

Persistence

Sees the same wide disk of Earth all day, from one fixed point. Gives up a steep view of the far north and south.

See the geostationary view
Highly elliptical (HEO)

The high latitudes

Sees the high latitudes for longer, because a stretched orbit moves slowest at its far end and the satellite lingers there. NASA calls the Molniya orbit, a high-inclination example, well suited to observing high latitudes. Gives up a fixed view: the satellite keeps moving.

See the elliptical orbit
Medium Earth orbit (MEO)

Closer, and more of them

Sees a smaller patch of Earth that moves across the ground. Gives up staying put, so a layer needs several satellites. GAO lists a planned missile warning and tracking layer here.

See the medium orbit
Low Earth orbit (LEO)

Closest, and fastest

Sees a small patch from close in, moving quickly. Gives up time over any one place, so it takes many satellites. The Space Development Agency’s Tracking Layer, as awarded, is meant for missile warning and tracking from here.

See the low orbit

Try this Open the explorer’s ring (level 1), choose GEO, and drag the Day slider: the satellite and its patch of ground turn together with Earth. Ride with GEO

02 / The photon

Why watch
in the infrared.

A rocket’s exhaust is hot gas, and hot gases emit infrared radiation in characteristic molecular bands. Carbon dioxide and water vapor, two products of burning fuel, are the examples here, taken from a civil combustion study. Hot gas glows whether or not the Sun is up, so an infrared view works on the night side too.

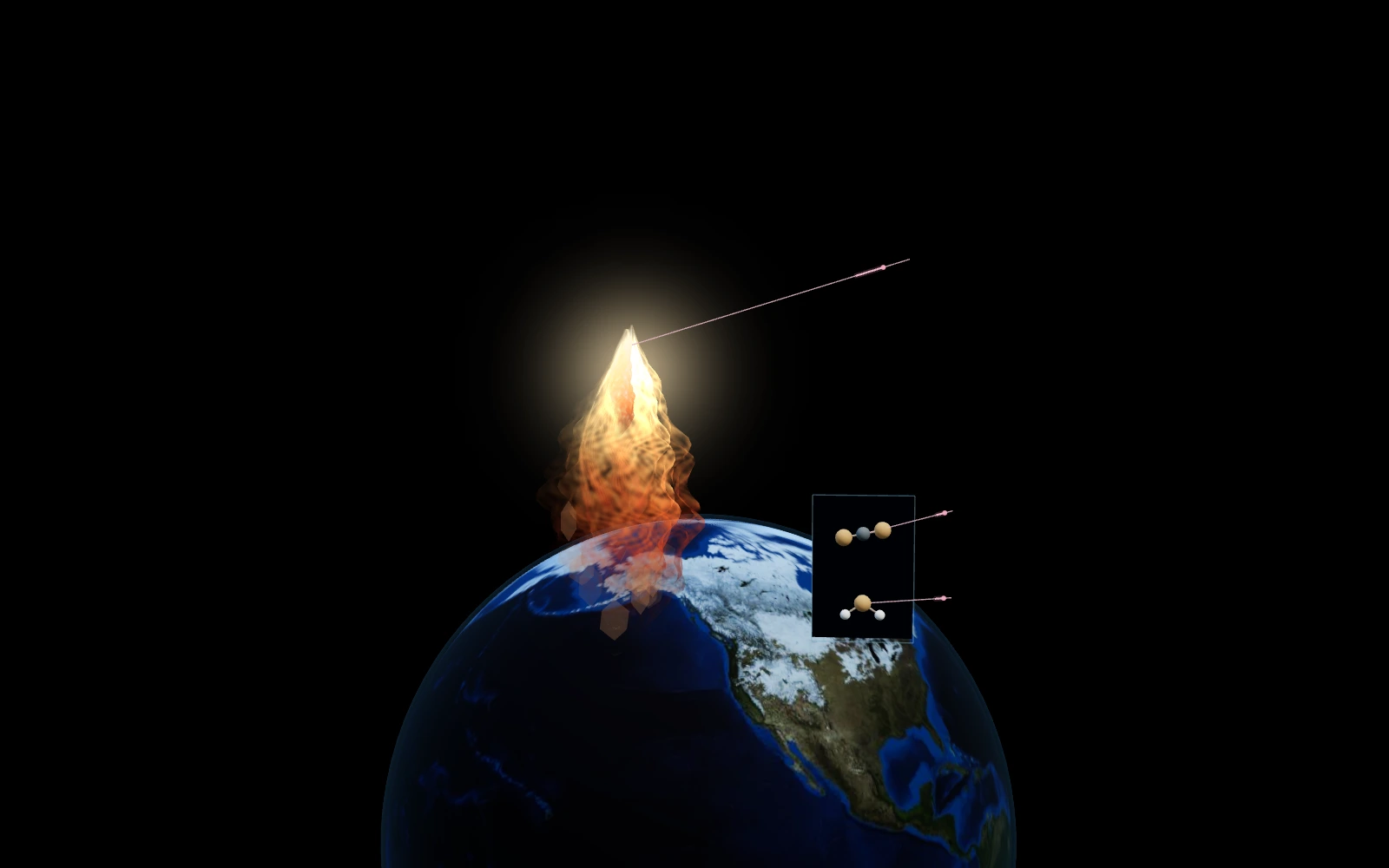

A rising false-color plume above a curved atmospheric layer, with enlarged carbon dioxide and water-vapor diagrams in an inset.
Illustrative plume, as drawn. The inset shows the two emitting molecules, carbon dioxide and water vapor. Shape, brightness, and colored light paths are artistic choices.
Why heat stands out

Hotter glows brighter, at shorter wavelengths.

Everything warm glows in the infrared. Earth’s surface, at about 288 K (15 °C), glows mostly at long wavelengths and far less in the mid-wave infrared. Heat a gas to 1,000 K and its glow climbs steeply and shifts toward shorter wavelengths.

That difference is the contrast. An ideal radiator at 1,000 K outshines an ideal one at 288 K about 3,800 times in a mid-wave band (3.8 to 4.8 μm), but only about 51 times in a long-wave band (8 to 12 μm). A mid-wave view is where hot gas stands out most.

Read it as a trend, not a plume. The 1,000 K is a round illustrative number, not a rocket-exhaust temperature, and real exhaust glows in molecular bands rather than smoothly. The units are watts per square meter per steradian: the radiance of an ideal blackbody, before any air, optics or detector. It implies nothing about what a sensor can see.

Ideal blackbody radiance in two teaching bands, in W m⁻² sr⁻¹. Calculated here from the Planck law, with labeled inputs.
SourceMid-wave, 3.8 to 4.8 μmLong-wave, 8 to 12 μm
Ground, 288 K0.77131.4
Hot gas, 1,000 K (illustrative)2,9601,600
Hot gas ÷ ground3,800 times51 times
CO₂ molecular emission bandNear 4.3 μm
H₂O molecular emission bandNear 2.7 μm

Wavelengths are in micrometers (μm), millionths of a meter. Visible light is shorter than one micrometer, so both bands sit in the infrared.

The public SBIRS fact sheet says its sensors detect short-wave and mid-wave infrared signals. It gives those broad ranges, not passbands.

Light through air
Why the ground looks dim in the plume bands Two side-by-side panels. Left: light in a plume band leaves the warm ground and fades out inside a shaded lower-air layer of water vapor and carbon dioxide. Right: a plume rises through that layer and light from its upper part continues toward orbit. Qualitative; no altitudes or amounts. FROM THE GROUND to orbit absorbed on the way up WARM GROUND FROM HOT GAS HIGHER UP to orbit less airabove WARM GROUND LOWER AIR: H₂O, CO₂
As drawn, qualitative. Shaded band: the lower air, with its water vapor and carbon dioxide. No altitudes, amounts or thresholds.

Emission at the source and transmission through air are separate questions. Atmospheric gases absorb some wavelengths while transmitting others.

The plume bands are a special case, since the air itself contains water vapor and carbon dioxide. The same molecules that emit these bands also absorb them. A NASA study of rocket-engine plumes finds strong absorption by the surrounding air at the very band centers where hot exhaust emits, and the loss grows with the length of the path.

This site’s own reading of that result, not a finding of the study: light in these bands from the warm ground has to climb through all of the lower air, so more of it is absorbed on the way up. Hot gas higher in the air has less absorbing air above it, so more of its light gets through. The diagram shows the idea only: it gives no altitudes, amounts or real-system performance.

Try this Open the explorer’s photon level (level 6) and look at the molecular bands, then open the atmosphere level and compare what the air lets through. Explore the molecular bands · Explore atmospheric absorption

03 / The satellite · A civil stand-in: GOES-R

A sensor needs
a spacecraft.

The payload observes. The spacecraft supports it with power, communications, and paths for heat to leave. This section does not show a missile-warning satellite. Military warning spacecraft are not documented in this detail, so it borrows a published civil design as a stand-in: NOAA’s GOES-R weather satellite and its Advanced Baseline Imager (ABI).

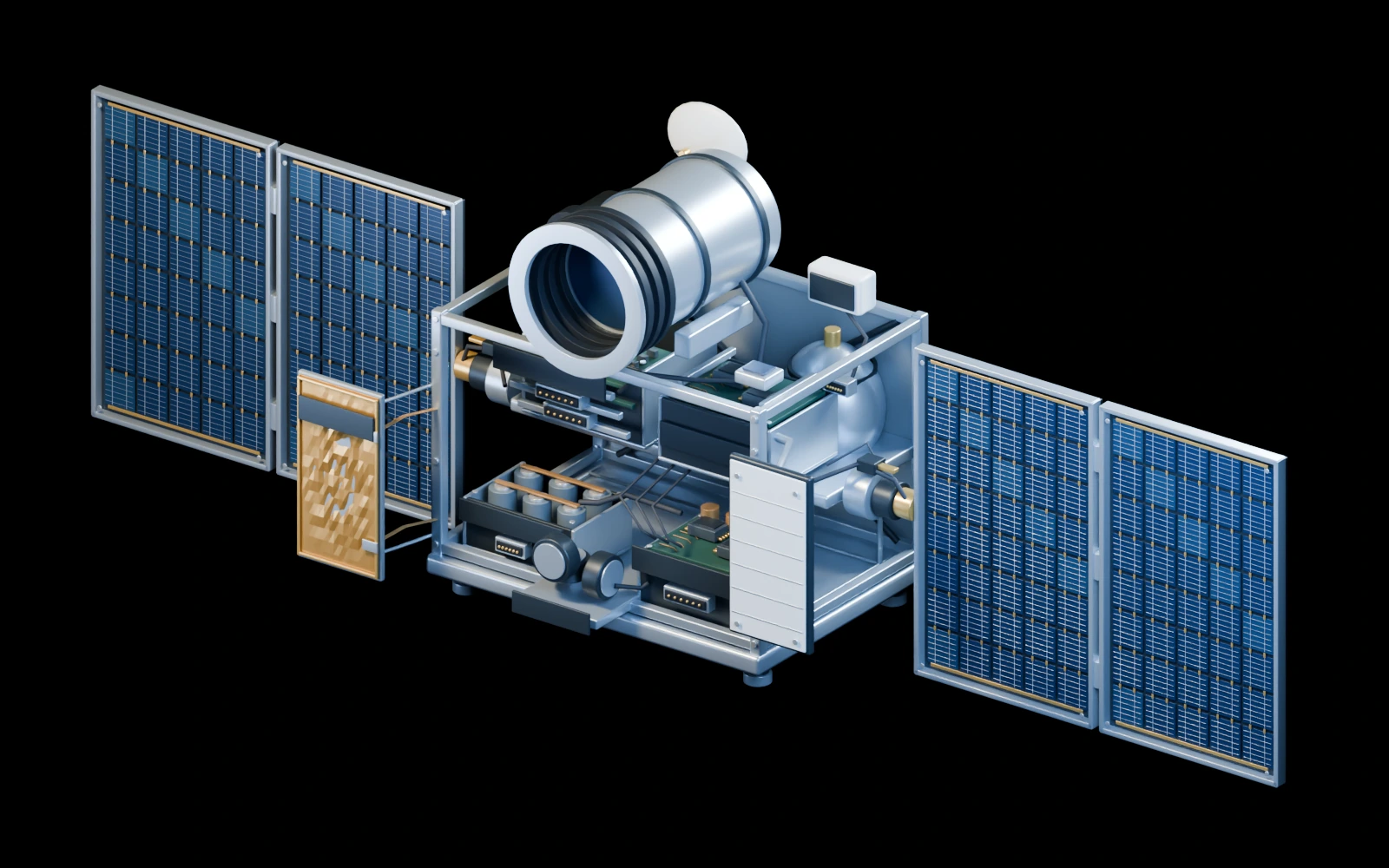

Open representative spacecraft bus with solar-cell strings, array drives, a telescope under a flared sunshade, battery and avionics equipment, reaction wheels, a propellant tank, antennas, and a displaced radiator.
Representative spacecraft, as drawn. The telescope sits on top under a flared sunshade, solar wings feed power, and the open bus holds batteries, wheels and electronics. It is a generic drawing, not a model of GOES-R: layout and proportions are illustrative.
Real SBIRS GEO satellite: published size, appendages deployed14.9 × 6.7 × 6.1 m
Real SBIRS GEO satellite: published mass on orbit2,506 kg

For scale only. These are the Space Force’s published figures for the real satellite, converted here from feet and pounds; about 499 kg of that mass is its two-sensor payload. They do not describe the drawing above or the GOES-R stand-in.

Light

The infrared payload collects incoming radiation and directs it toward a detector.

Data

Electronics read the detector, process observations, and pass data through communications links.

Heat

Thermal paths move heat toward radiators. ABI provides a published example of a radiator releasing instrument energy to space.

Try this Open the explorer’s spacecraft (level 2), switch to the Heat layer, and follow a path from the instrument to the radiator. Explore the spacecraft

04 / The payload

An instrument.
Designed as a whole.

The payload is the instrument the spacecraft carries. A telescope collects light and forms an image on a detector, electronics read the detector, and a cooler keeps it cold. Start with the assembled hardware, then open its enclosures to see the boards and connections inside.

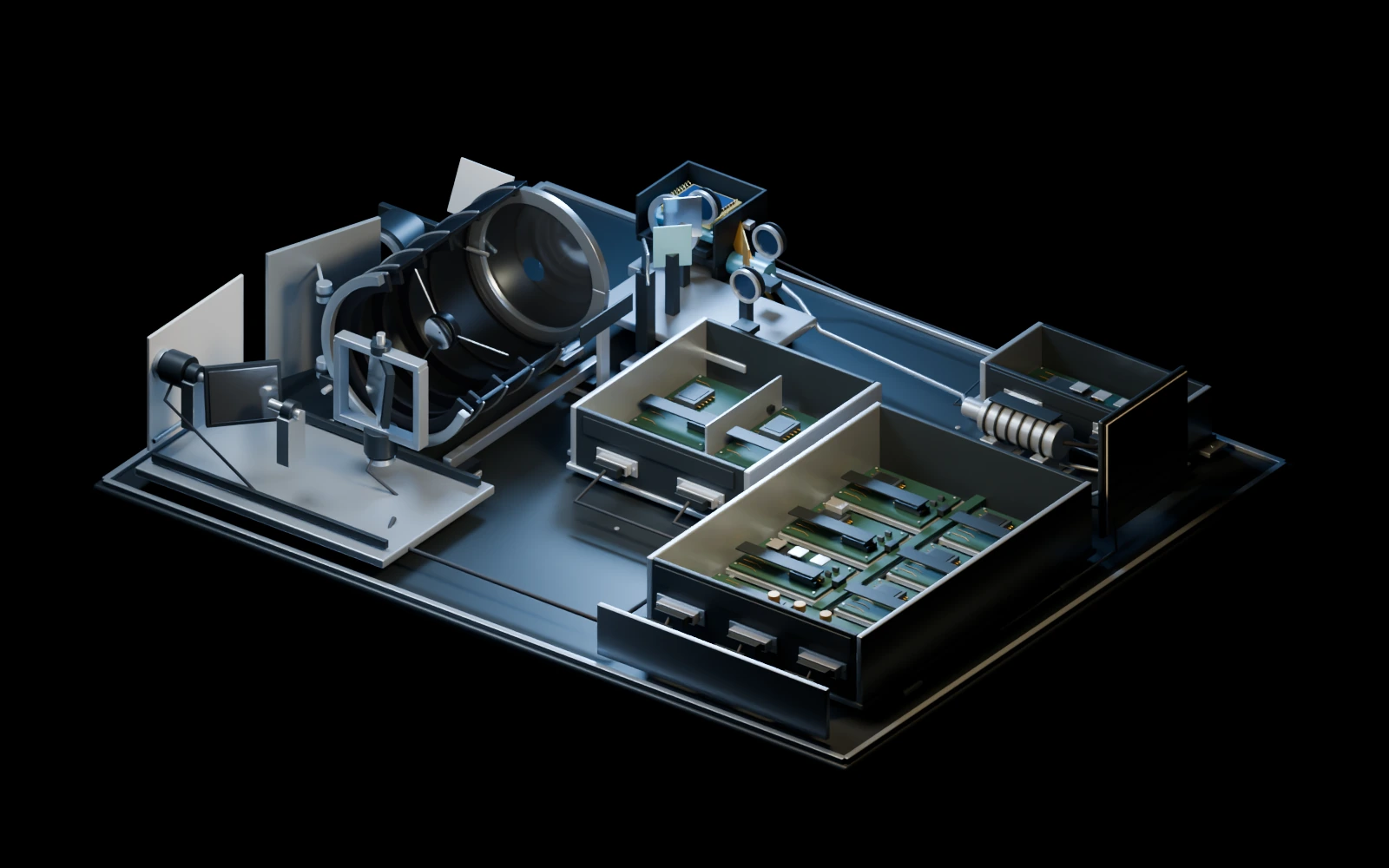

Representative integrated infrared instrument: sensor assembly with optics and detector-side electronics, common instrument-electronics chassis, and separate cooler controls.
Representative instrument, as drawn. The telescope and its steering mirrors sit at left; boxes of circuit cards at center and right read and control it. Ray paths and internal geometry are schematic.
An optical path

The drawing connects the telescope to the detector. In the named ABI instrument, the telescope forms a scene image at the focal-plane detectors.

Scanning or staring

An instrument can cover a scene in two broad ways. A scanning instrument sweeps its view across the scene with moving mirrors; ABI steers its line of sight with two scan mirrors. A staring instrument instead holds a two-dimensional detector array on the whole scene at once, with no sweep. Glossary

Think of a scanner as reading a page through a narrow slot: it sees everything only after a full sweep. A stare is a photograph: the whole frame at once.

The U.S. missile-warning program uses both ideas. The Space Force’s public fact sheet says the SBIRS payload carries two sensors, a scanner and a step-starer. It names the sensor types, not how well they perform.

Real SBIRS payload: infrared sensors2 sensors
Civil twin ABI: how often it images the whole disk again10 min

Try this Open the explorer’s payload (level 3) and follow the light from the telescope to the detector. Follow the optical path · Read every payload component

Go deeper: how one instrument spans several housings

Physical assemblies / ABI civil example

One instrument can span several housings.

ABI’s Sensor Unit contains the optical train, detector modules and Sensor Unit Electronics. A separate Electronics Unit houses coordinated cards on a common parent board. Cooler-control electronics mount separately to the spacecraft.

  1. Sensor assemblySensor Unit ElectronicsReadout, conversion and peripheral control inside the sensor unit
  2. Electronics assemblyCommon electronics chassisController, data, timing, power and scan-control cards together
  3. Cooler-control assemblyCooler-control electronicsElectrical drive and feedback for the cooler in the sensor unit

A supplier’s responsibility, a physical enclosure and an electrical function describe different boundaries. Lockheed Martin’s 2014 SBIRS release names the prime and payload provider and describes payload delivery for bus integration; it reveals no internal electronics layout.

At integration, mounting, power, commands and timing, science data and thermal interfaces connect the instrument to the spacecraft. NASA describes controlled interfaces and verification throughout design and integration. Explore the assembly and interface map

Go deeper: follow a measurement through the electronics

Functional path / Inside the same instrument

Follow a measurement through the electronics.

The steps below describe what the electronics does. Readout and conversion belong to sensor-side electronics; packet handling and the spacecraft interface are cards inside the common Electronics Unit.

  1. Focal-plane arrayDetector + ROICThe detector and its readout integrated circuit give an electrical response
  2. Sensor Unit ElectronicsVideo ProcessorsBias, timing, and samples
  3. Inside the same Sensor Unit ElectronicsConversion circuitryAnalog data becomes digital
  4. Electronics UnitData Processor + HSIOData Processor → High Speed I/O

Instrument controller and clocks coordinate operation.

Cryocooler control closes a separate temperature-feedback loop.

Explore the complete instrument diagrams

The blocks show functional responsibilities; their spacing and the linked cutaway are representative.

05 / The focal plane

Hold the image.
Manage the heat.

At the focal plane, light becomes an electrical signal. Cooling can reduce thermal noise, a benefit described in NIST's cryocooler review.

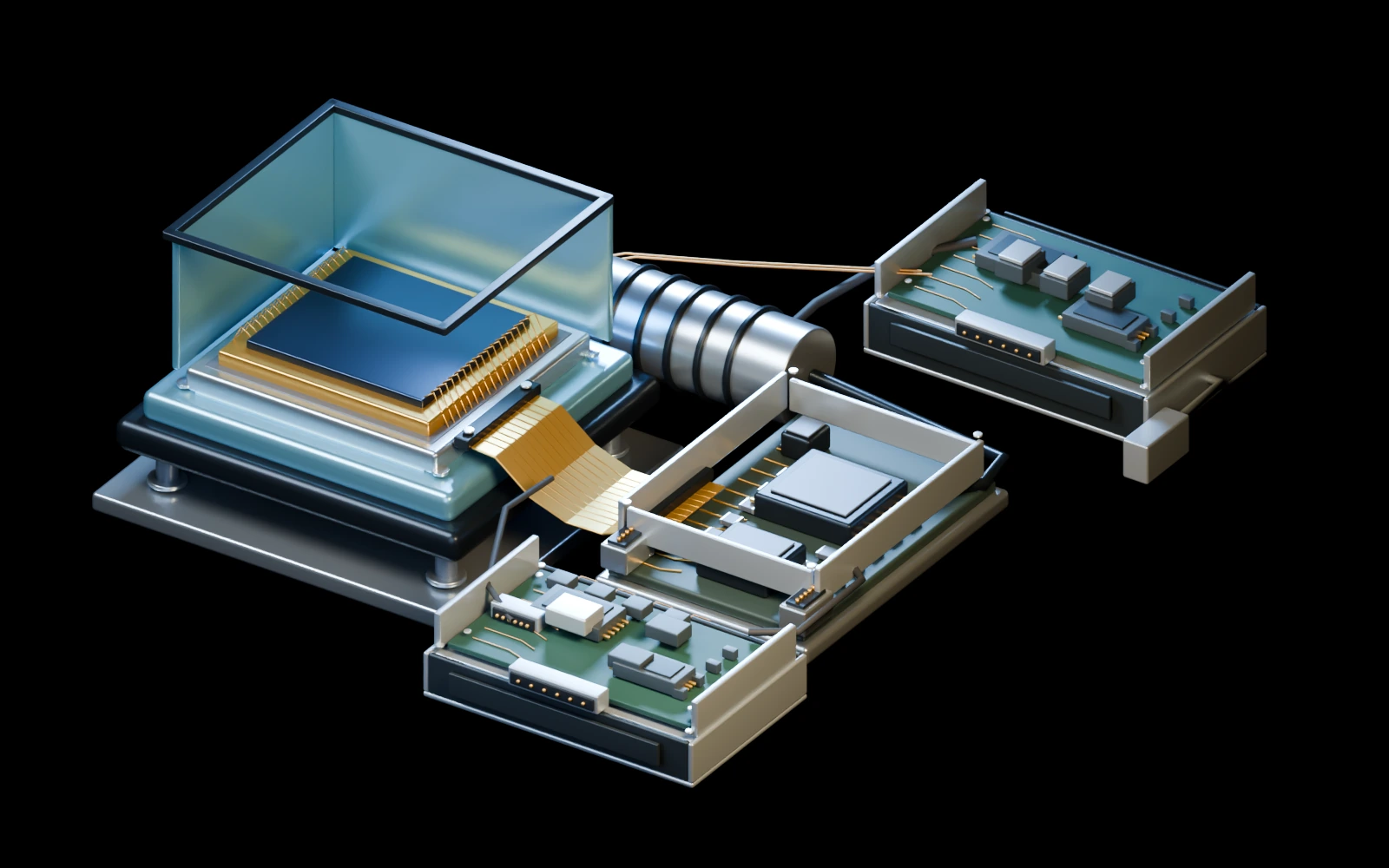

Representative detector and readout package inside an open cold shield, with mounting supports, a gold flex interconnect, thermal strap, cooler, warm video electronics, bias/timing board and temperature-feedback electronics.
Representative detector assembly, as drawn. The dark detector sits inside an open cold shield; a gold flex cable carries its signal to warm electronics boards, and a strap links it to the cooler. The arrangement is illustrative.
The cold region

Supports, electrical connections, and thermal paths meet at the detector assembly. ABI's published design moves heat from its focal planes through the cooler toward loop heat pipes and a radiator. The assembly above remains representative.

Why cold is hard

An infrared detector senses heat, so warmth inside the instrument competes with the light it is trying to measure. The detector has to run far colder than the spacecraft around it. A cooler pulls heat out of the detector, and that heat, plus the power the cooler uses, must still leave the spacecraft through radiators. Landsat 9’s civil TIRS-2 instrument gives a published example of how cold.

Civil example: TIRS-2 focal-plane design temperature43 K
Reading kelvinsThe kelvin scale counts up from absolute zero, the coldest possible temperature. One kelvin step is the same size as one degree Celsius. Glossary

For scale, the Earth this kind of instrument watches averages about 288 K, so a 43 K detector runs about 245 kelvin colder, or about −230 °C against 15 °C.

Try this Open the explorer’s focal plane (level 4) and look for the strap that carries heat away from the detector. Explore the detector assembly

06 / The pixel

Light arrives.
Charge is read.

A semiconductor detector converts absorbed light into an electrical response. Readout electronics measure that response and pass it onward.

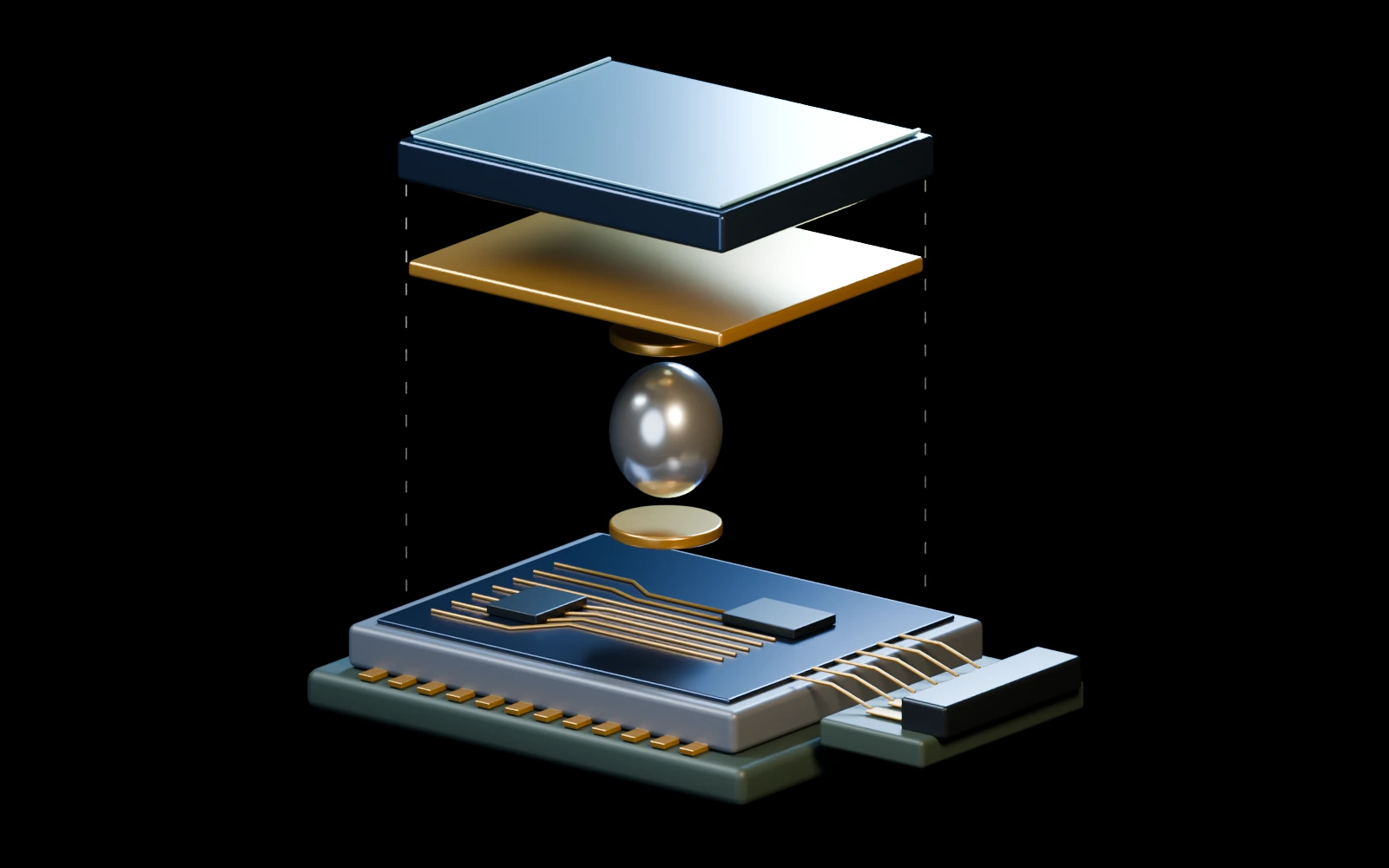

Enlarged conceptual hybrid detector with separate absorber, contact pad, indium joint, readout cell, support and output interface.
Conceptual detector element, as drawn, pulled apart: the absorber on top, a contact, an indium joint and a second contact, and the readout cell below. Layers and proportions are representative.
A physical connection

The absorber, contact, and readout cell illustrate a sequence. ABI's published component roles provide a named example of photon-to-electrical conversion and electronics reading detector arrays. The drawing does not reproduce an ABI pixel. A detector array repeats this element many times; reading every element produces an image of the scene.

A worked toy example

Photons, charge, a number.

  1. 1 · Photons land1,000

    photons reach one pixel during one look.

  2. 2 · Charge collects650

    electrons are freed, because in this toy example 65% of photons each free one.

  3. 3 · A number is read5

    The electronics turn the charge into a whole number from 0 to 7.

By hand: 1,000 × 0.65 = 650 electrons. With 1,000 electrons as full scale and 8 levels, 650 ÷ 1,000 × 8 = 5.2, and the converter keeps the whole number, 5. A real instrument’s numbers differ; these round values only make the steps followable. Glossary: readout circuit

Try this Open the explorer’s pixel (level 5) and watch charge collect in the absorber. Explore the detector element

From pixel to warning

A measurement
needs a path.

A reading on a detector is not yet a warning. It is processed on the spacecraft, sent to the ground, processed again, and passed to the people who act on it. Public sources describe the roles along that path, not how fast it runs.

  1. On the spacecraftRead the detectorReadout electronics turn each detector response into numbers, again and again
  2. On the spacecraftProcess on boardA mission processor handles the data before it leaves
  3. Through spaceSend it downRadio links carry the data to the ground at the speed of light
  4. On the groundProcess againA ground system operates the spacecraft and processes its mission data
  5. To peopleWarnProcessed results become a warning for the people who must act on it
What the public record says

SBIRS shows both halves of the path. The Space Force’s fact sheet says the satellites send raw sensor data to the ground, and that on-board signal processing also sends down the events it has detected.

Newer designs name the same stages. The Space Development Agency’s Proliferated Warfighter Space Architecture (PWSA) is a planned satellite architecture, and GAO lists its parts: a spacecraft bus, an infrared payload, a mission processor, and communications equipment.

On the ground, Future Operationally Resilient Ground Evolution (FORGE) is a planned ground system that GAO says will operate the satellites and process the mission data they collect. These examples come from different programs. Together they show the roles along the path, not one connected system or a warning timeline.

Even the trip through space takes time: light needs about an eighth of a second to cross from geostationary orbit straight down to the ground, and processing and routing add more.

Follow the ground role · Explore the ground segment

What’s public / The civil twins

What’s public,
and what isn’t.

How sensitive military warning sensors are, how sharp their images are, and how their detector arrays are laid out is not public, and this site does not estimate it. Orbits, program roles, and the physics are public. For real hardware numbers, the story turns to two civil instruments whose designs are published, and each of those figures stays labeled with its instrument.

NOAA / GOES-R Series

Advanced Baseline Imager

ABI observes Earth across visible and infrared channels. This specification belongs to ABI.

16 bands
Read the ABI source
NASA / Landsat 9

Thermal Infrared Sensor 2

TIRS-2 uses a cooled focal plane. This design temperature belongs to the Landsat 9 civil instrument.

43 KFocal-plane design temperature
Read the TIRS-2 source

Heat seen from geostationary orbit: three GOES satellites look at the same wildfire.

NOAA STAR crop of the Kenneth Fire: three grayscale panels at 3.9 micrometers, one each from GOES-18, GOES-19 and GOES-16, each showing the fire as a few dark squareshot pixelssame fire, second satellitethird satellite

Each square is one pixel. In these 3.9 μm panels, the darkest squares are the hottest, and they sit in the same place for all three satellites. It is the physics this story follows, applied to a civil weather product.

NOAA STAR: Kenneth Fire, January 2025. Fire products, not a raw single-band image. NOAA labels the GOES-19 imagery pre-operational. View the image and explanation at NOAA ↗

Details: the full NOAA figure and its legendNOAA STAR comparison of fire products for the Kenneth Fire, with 3.9 micrometer images, a radiance difference, fire radiative power and a fire mask for three satellites, and NOAA’s fire legend

Rows from the top: the 3.9 μm image, a difference between 3.9 μm and 11.2 μm radiance, fire radiative power (FRP), and a fire detection mask (FDC). NOAA’s page says FRP is calculated for each hot pixel and that the algorithm uses the 3.9 μm and 11.2 μm bands to locate fires. This site does not interpret the other legend entries; see NOAA’s explanation.

Try this Open the explorer’s side levels for the two civil instruments and compare a published channel list with a published cold stage. Explore ABI · Explore TIRS-2's cold stage

What to remember

Five things
to take away.

  1. Heat is the signal. Hot gas glows far brighter than a 288 K Earth in the mid-wave infrared, about 3,800 times for an ideal 1,000 K example, day or night. The photon
  2. One orbit is not enough. A geostationary satellite holds about 42% of Earth in view , but a point at 75° latitude sees it only 6° above the horizon ; other orbits trade persistence for closeness. The ring
  3. A payload is a telescope, a detector and a cooler. It scans or stares, and the detector must run cold: 43 K for the civil twin TIRS-2. The payload
  4. Detection is a chain. A pixel becomes a number, the number is processed on board, sent down (0.12 s one way from GEO, at best), processed again, and passed to people. The data path
  5. Know what is public. Orbits, roles and physics are public. Sensitivity, resolution and warning time are not, and this site does not estimate them. Civil twins supply the real numbers, each labeled. What’s public

Keep going

Now explore it
in 3D.

The explorer is the same journey as a model you can turn and open. Start with a question at each level, inspect a component, then continue inward. Related views return you to where you left off.

Watch the mission →A guided flight from a launch to a generic alert, chapter by chapter.Follow the learning journey →Questions, replayable illustrations, and a next-level link keep the path clear.Explore the hardware →Choose any part. Its name comes first, with function, internal components, and evidence below.Try the physics →Change a teaching input, inspect the result, and open the reasoning. Named instrument specifications stay separate.

The evidence rule

Every number
has a way back.

A published specification, an attributed report, a calculation, and an assumption are different kinds of statements. Their labels stay beside the figures.

SpecVendorReportedCalc.Assumed

Each active label opens its source or assumption. Sources that could not be opened remain marked unchecked and support no claim.

Explore the evidence

Behind the project

Built to be checked.

Reed directs the project, reviews the sources, and chooses the scope. AI coding assistants help build and check it. Blender scripts produce the representative geometry.

The story and the explorer cover the orbit, spacecraft, payload, detector and emitting gas, with side views of the ground segment and the two civil instruments. Independent orbit and radiation examples show their inputs and formulas. Source, type, and browser checks keep the work reviewable.

Read the method
